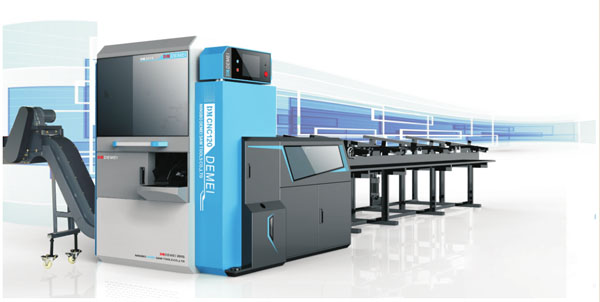

DM-120NC高速金属圆锯
| 机型规格 | DM-120NC | ||
|
锯切能力 Cut-off Capacit |
棒材 | Round bars | Φ40-120mm |
| 角钢 | Square rod | L20-110mm | |
| 圆管 | Round pipe | Φ40-120mm | |
| 方管 | Square pipe | 口40-95mm | |
| 加工长度 | Processing length | 10mm-1000mm | |
|
机头主轴 Saw Head Spindle |
适用TCT碳化钢锯片 | Applicable TCT carbide saw blade | Φ360mm-Φ380mm-2.6t |
| 锯片回转数 | Sawblade rotation speed | 50-120rpm | |
| 主轴间隙消除与刹车系统 | Spindle backlash elimination And brake system | 液压控制 Hydraulic control | |
| 锯片残屑清理器 | Chip cleaner | 圆形钢刷 Round steel brush | |
|
马达 Moter |
主轴马达 | Spindle motor | 15kw-4p |
| AC伺服马达(进刀) | AC servo motor(saw) | 1.8kW | |
| AC伺服马达(GFC送料) | AC servo motor(GFC feed) | 1.3kW | |
| 油压驱动马达 | Hydraulic pump motor | 3.7kw-4p | |
| 机头主轴 | 退刀速度 | Return spe | 100mm/s |
| Saw head spindle | 进刀速度 | Feeding speed | 0~80mm/s |
| Ac伺服送料 AC servo (feed) | 速度 | Speed | 150mm/s-600mm/s(速度可设置) |
| 集束供料装置 | 可置材料长度 | Can be set the length of mate | 3.5m-65m |
| Bundling feeding equipment | 可负载材料重量 | Can be loaded the weight of material | 4500kg/次 |
| 气压装置 Pneumatic Device | 工作气压压力 | Operating air pressure | 0.45-0.7Mpa |
| 油压装置 | 工作油压 | Work operating pressure | 7MPa(MAX) |
| Hydraulic Device | 油箱容量 | Tank capacity | 200L |
| 高速金属圆锯机主要部件 | ||
| 序号 | 名称 | 品牌 |
| 1 | NAME | BRAND |
| 2 | 锯片 | DEMEI |
| 3 | Saw blade | DEMEI |
| 4 | PLC | 欧姆龙 |
| 5 | PLC | OMRON |
| 6 | 主轴电机 | 皖南电机 |
| 7 | Spindle motor | ANWEI WANNAN |
| 8 | 送料伺服电机 | 日本安川 |
| 9 | Feeding servo moto | JAPAN YASKAWA |
| 10 | 送料伺服驱动器 | 日本安川 |
| 11 | Feeding servo driver | JAPAN YASKAWA |
| 12 | 进刀伺服电机 | 日本安川 |
| 13 | Feed blade servo motor | JAPAN YASKAWA |
| 14 | 进刀伺服驱动器 | 日本安川 |
| 15 | Feed blade servo driver | JAPAN YASKAWA |
| 16 | 马达保护器 | 日本富士 |
| 17 | Motor protector | JAPAN FUJI |
| 18 | 近接开关 | SUNX |
| 19 | Sensor switch | SUNX |
| 20 | 电磁接触器 | 日本富士 |
| 21 | Electromagnetic contactor | JAPAN FUJI |
| 22 | 电磁阀 | KEET(日本) |
| 23 | Solenoid valve | EET(JAPAN) |
| 24 | 主轴变速箱轴承 | NSK\FAGISKF |
| 25 | Spindle gearbox bearings | NSK\FAG\SKF |
| 26 | 油缸 | 定制 |
| 27 | Fuel tank | CUSTOMIZED |
| 28 | 触控屏幕 | 定制 |
| 29 | Touch screen | CUSTOMIZED |
| 30 | 变频器 | 日本安川 |
| 31 | Frequency converter | JAPAN YASKAWA |
